Photohelic Switch/Gauges:

enviro tech industrial product
enviro tech industrial product

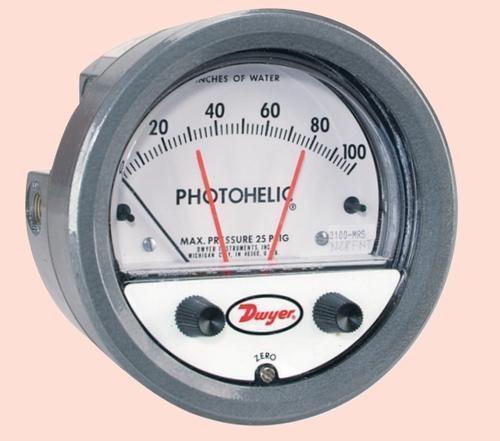

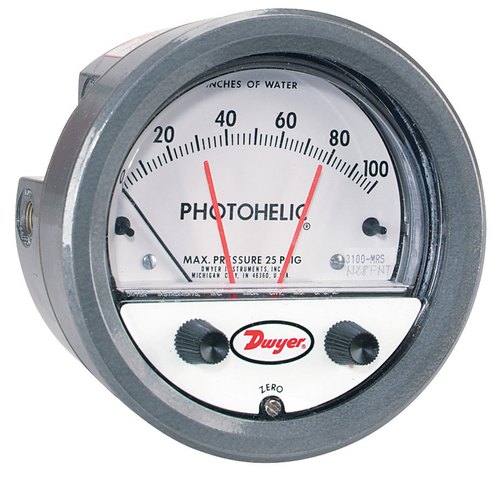

Photohelic® Switch/Gauges: Combines Differential Pressure Gage with Low/High Set points



Features:



  • Service: Air and non-combustible,compatible gases
  • Wetted Materials: Consult factory
  • Accuracy: ±2% of FS (3000-0 ±3% of FS). (3000-00 ±4% of FS)
  • Pressure Limit: -20 Hg. to 25 psig (-0.677 bar to 1.72 bar). MP option
  • 35 psig (2.41 bar), HP option; 80 psig (5.52 bar)
  • Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)
  • Process Connections: 1/8 female NPT (duplicated side and back)
  • Size: 4 (101.6 mm) dial face, 5 (127 mm) OD x 3-1/8 (79.38 mm)
  • Weight: 1.8 Ib (816 g)

Using solid state technology, the Series 3000MR and 3000MRS Photohelic® switch/gages combine the functions of a precise, highly repeatable differential pressure switch with a large easy-to-read analog pressure gage employing the durable, time-proven Magnehelic® gage design. Switch setting is easy to adjust with large external knobs on the gage face. Gage reading is unaffected by switch operation — will indicate accurately even if power is interrupted. Solid state design now results in greatly reduced size and weight.




Other Information

  • Pay Mode Terms: L/C (Letter of Credit)

Yes ! I am Interested

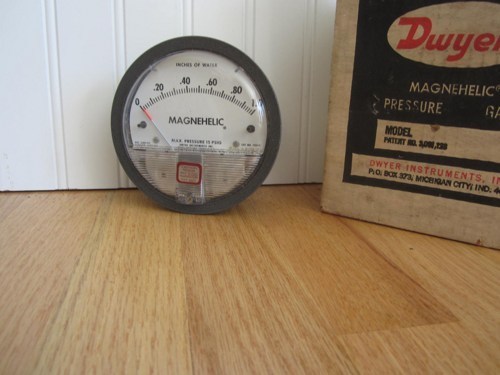

Dwyer Make Magnehelic Differential Pressure Gauge:

enviro tech industrial product
enviro tech industrial product

Our specialization lies in offering a commendable range of Dwyer Make Magnehelic Gauge Series 2000. Manufactured with utmost care and precision at our vendors end using superb quality components, our offered product is highly acclaimed in the market. After being manufactured, the offered product is properly tested on defined parameters. Clients can avail the entire range from us in various Technical Specifications at industry leading prices.

Features:

  • Compact size
  • Accuracy
  • Easy installation

Yes ! I am Interested

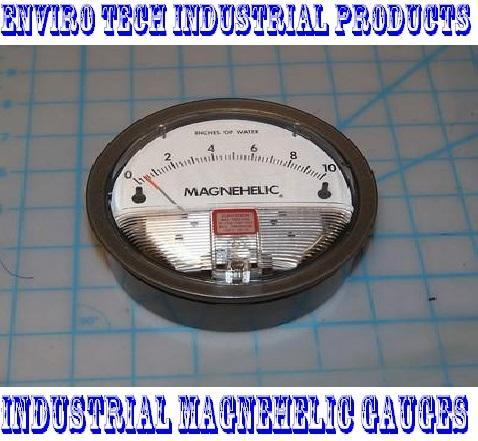

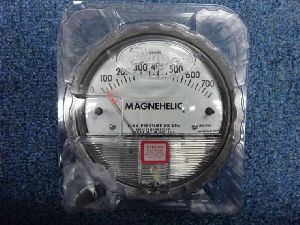

Industrial Magnehelic Gauges

enviro tech industrial product
enviro tech industrial product

We are the leading manufacturer and exporter of a quality tested assortment of Industrial Magnehelic Gauges. Our range is widely used in checking the automatic valves and gas-air ratio controls, further in medical equipments also to monitor blood and respiratory pressures. Besides it is used to measure the fan and blow pressures, liquid levels and pressures in fluidic systems. Operated by a diaphragm our product is low in cost and is available in different specifications ranging from


0-10,
0-25,
0-40,
0-50,
0-100 MM Wc , And
0- 60 pA,
0-250 pA.



Uses : Used for high accuracy-guaranteed within 2% of full scale and for the wide choice of 81 models available to suit your needs precisely.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

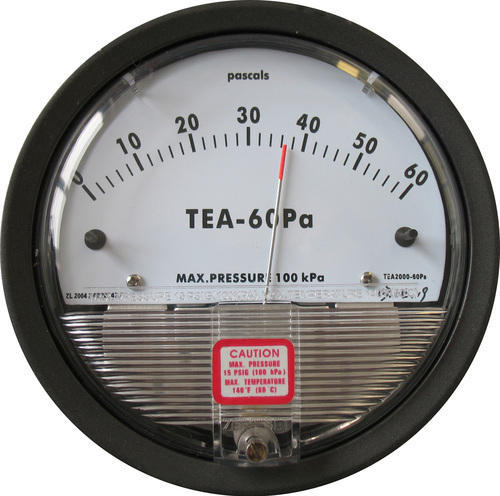

Magnehelic Gauge

enviro tech industrial product
enviro tech industrial product

Having vast experience in the relevant industry we are engaged in providing a broad assortment of Magnehelic Gauge that is assemble in order to meet specific demands of customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at clients end. Clients can avail the offered range from us at market leading prices within stipulated time frame.



Features:



  • Accuracy

  • High functionality

  • Long service life



Specifications:



  • We provide magnehelic gauge of series which is low in cost, diaphragm operated and differential pressure gauge

  • Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%

  • Besides, these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors cabinet purging and many others

  • We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas

  • In addition to this these housing are fabricated by using die cast aluminum case and bezel with acrylic cover

  • These have exterior finish with grey color to withstand 168 hour salt spray corrosion test



Specifications:



  • Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges) throughout range at 70°F (21.1°C)

  • Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option

  • HP option: 35 psig (2.41 bar) 80 psig (5.52 bar)

  • Overpressure: Relief plug opens at approximately 25 psig (1.72 bar) standard gages only

  • Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)

  • Size: 4 (101.6 mm) Diameter dial face

  • Mounting Orientation: Diaphragm in vertical position Consult factory for

  • Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back

  • Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)

  • Other position orientations



Applications:



  • Filter Status

  • Duct Static Pressure

  • Clean Room Pressure

  • Building Pressure

  • Fan and Blower Pressure

  • Paint Booths

  • Dust Collectors

  • Glove Box Pressure

  • Bubbler Systems

  • Cabinet Purging


Yes ! I am Interested

Minihelic II Differential Pressure Gauges

enviro tech industrial product
enviro tech industrial product

 Minihelic II Differential Pressure Gauges

We have in our stores a wide assortment of Minihelic II Differential Pressure Gauges. Designed especially for panel mounting in a single 2-3/8” diameter hole, these gauges come with small size and can easily be operated up to 30 psig pressure. These gauges are manufactured by us using superior quality raw material procured by the trusted vendors of the market in accordance to international quality standards.

Features:

Combining high accuracy
Compactness
Dependability


Yes ! I am Interested

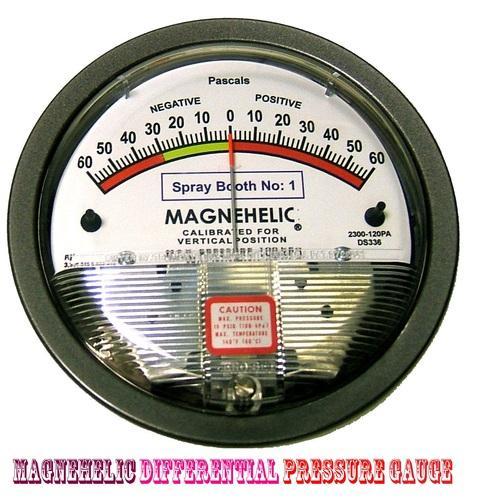

Magnehelic Differential Pressure Gauge

enviro tech industrial product
enviro tech industrial product

We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas. In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover. These have exterior finish with grey color to withstand 168 hour salt spray corrosion test.


Specifications :



  • Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).
  • Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option:
  • HP option: 35 psig (2.41 bar), 80 psig (5.52 bar).
  • Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
  • Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
  • Size: 4 (101.6 mm) Diameter dial face.
  • Mounting Orientation: Diaphragm in vertical position, Consult factory for
  • Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back.
  • Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
  • Other position orientations.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

Capsuhelic Differential Pressure Gage

enviro tech industrial product
enviro tech industrial product

 Capsuhelic Differential Pressure Gage


Series 4000 Capsuhelic® Differential Pressure Gage

Measures Pressure, Vacuum or Differential, Suitable for Internal Pressures to 500 psig

The SERIES 4000 Capsuhelic® Gage is designed to give fast, accurate indication of differential pressures. The gage may be used as a readout device when measuring flowing fluids, pressure drop across filters, liquid levels in storage tanks and many other applications involving pressure, vacuum or differential pressure. The pressure being measured is held within a capsule which is an integral part of the gage. This containment of the pressure permits the use of the gage on system pressures of up to 500 psig, even when differentials to be read are less than 0.1 in w.c.

Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

Product Applications
  • Fluid flow
  • Liquid storage tanks
  • Filter pressure drops
  • Vacuum or differential pressure
SpecificationsService:Aluminum Case: Air and compatible gases and oil based liquids. Brass Case: Air and compatible gases and water based liquids.Wetted Materials:Consult factory.Housing:Die cast aluminum with impregnated hard coating, standard. Optional forged brass housing is required for water or water based fluids.Special material diaphragms available, contact factory.Accuracy:±3% of FS at 70°F (21.1°C). (±2% on 4000S models, ±4% on 4200, 4210, 4215, 4220, 4300, 4400, and 4500).Pressure Limits:-20" Hg to 500 psig. (-0.677 bar to 34.4 bar).Temperature Limits:20 to 200°F (-6.67 to 93.3°C).Size:4" (101.6 mm) diameter dial face.Mounting Orientation:Diaphragm in vertical position. Consult factory for other position orientations.Process Connections:1/4" female NPT high and low pressure taps, duplicated - one pair top for air and gas, and one pair bottom for liquids.Weight:3 lb, 3 oz (1.45 kg) aluminum case; 7 lb, 13 oz (3.54 kg) brass case.Standard Accessories:Two 1/4" NPT plugs for duplicate pressure taps, four flush mounting adapters with screws and four surface mounting screws.Features
  • Gage capsule permits high-pressure usage with small differentials
  • Zero and range adjustments outside of gage means no disassembly in normal service
  • Time-proven, simple, frictionless movement that permits full scale readings as low as 0.5 in w.c.
  • Diaphragm-actuated versus liquid filled gage supports outdoor use
Options
  • ASF Adjustable Signal Flag
  • B Brass Case
  • Scale Overlays Red, Green, Mirrored or Combination, Specify Locations
  •


Yes ! I am Interested
