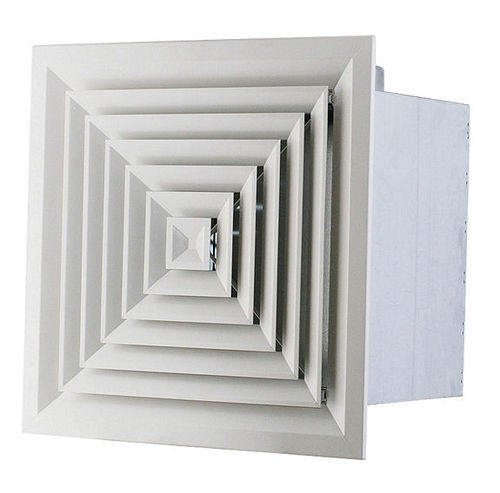

Air Diffuser

enviro tech industrial product
enviro tech industrial product

With the assistance of our dexterous team of professionals, we are engaged in offering a wide range of Air Diffuser. Our provided diffuser is manufactured in line with the set industry standards to deliver high quality and defect free product at clients end. Further it is provided to our clients in diverse sizes to exact suit with their various applications.



Features:



  • For ceiling installation or application

  • Material: Aluminum alloy 1.0mm thickness extend

  • Well white powder-coating finish

  • Neck Diameter from 100mm to 400mm



Specifications:



  • Dia.:100-400mm Thick:1mm

  • Material: Anodized Aluminum

  • HVAC system well performance

  • Round Air Diffuser

  • Round Air Diffuser

  • (Circle diffuser round ceiling diffuser)


Yes ! I am Interested

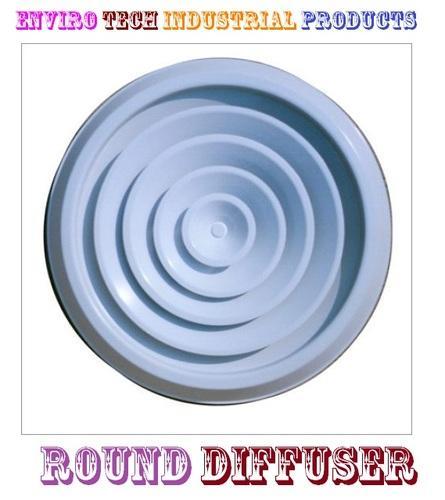

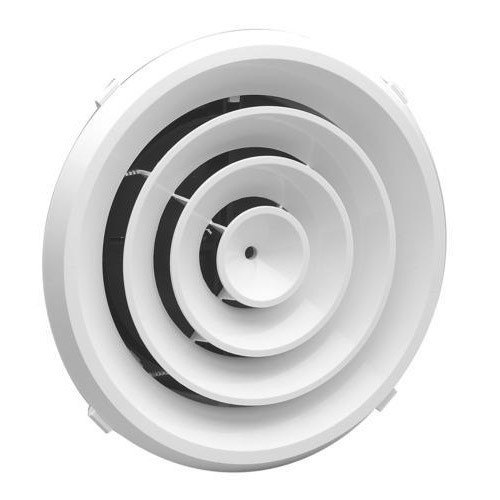

Round Diffuser

enviro tech industrial product
enviro tech industrial product

The perfect Compliment for any interior where every smallest detail can be executed with care.

Ceiling Round diffuser that match your quest for perfection  measure. Crafted in extruded aluminum section.

Round Ceiling Diffusers Series adjustable round ceiling diffusers combine the classic beauty styling with maximum air diffusion efficiency.


Application

Round Ceiling Diffusers can be used both for supply and extract applications. With a fixed blade arrangement the ceiling diffusers are mainly suitable for Circular discharge i.e. 360°.

We have developed many models in response to specific air distribution requirements. Others have been developed or modified to meet requirements as to appearance module size or other visual considerations.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

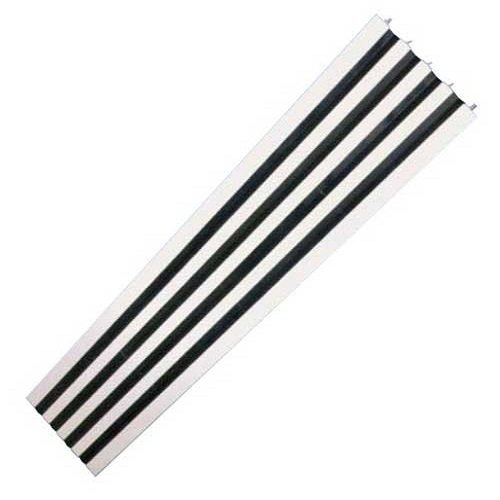

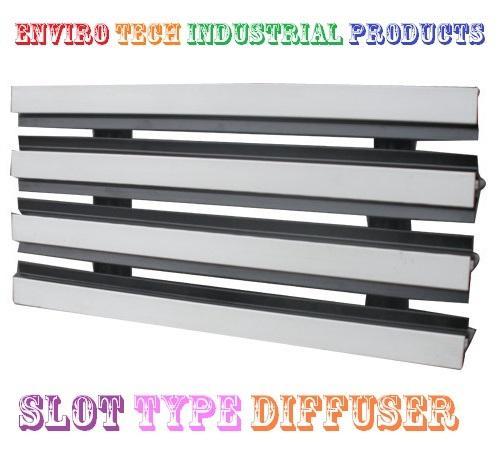

Slot Diffuser

enviro tech industrial product
enviro tech industrial product

We are engaged in manufacturing and exporting of Slot Type Diffusers.

Our range includes the following features:

  • Extruded aluminum construction, ideally designed for ceiling installation.
  • High diffusion rates leading to rapid temperature and velocity equalization.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

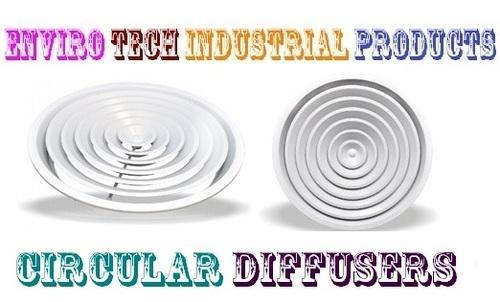

Circular Diffusers

enviro tech industrial product
enviro tech industrial product

We are engaged in offering a wide range of Circular Diffusers. These Circular Diffusers are available in multi cone type arrangement for air distribution. It has an ability to distribute equally in all the direction. We offer these diffusers at highly reasonable rates to our clients.


Features:

  • Finish : Powder Coated
  • Attachment : Butterfly Damper (Optional)
  • MOC : Aluminium

Specifications:

Model No.

Duct Opening Size (In mm)

Total No. of Rings

ETIP-225

225

3

ETIP-300

300

4

ETIP-375

375

5

ETIP-400

450

6


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

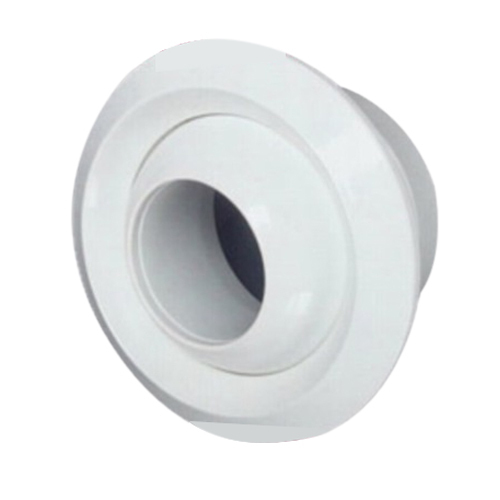

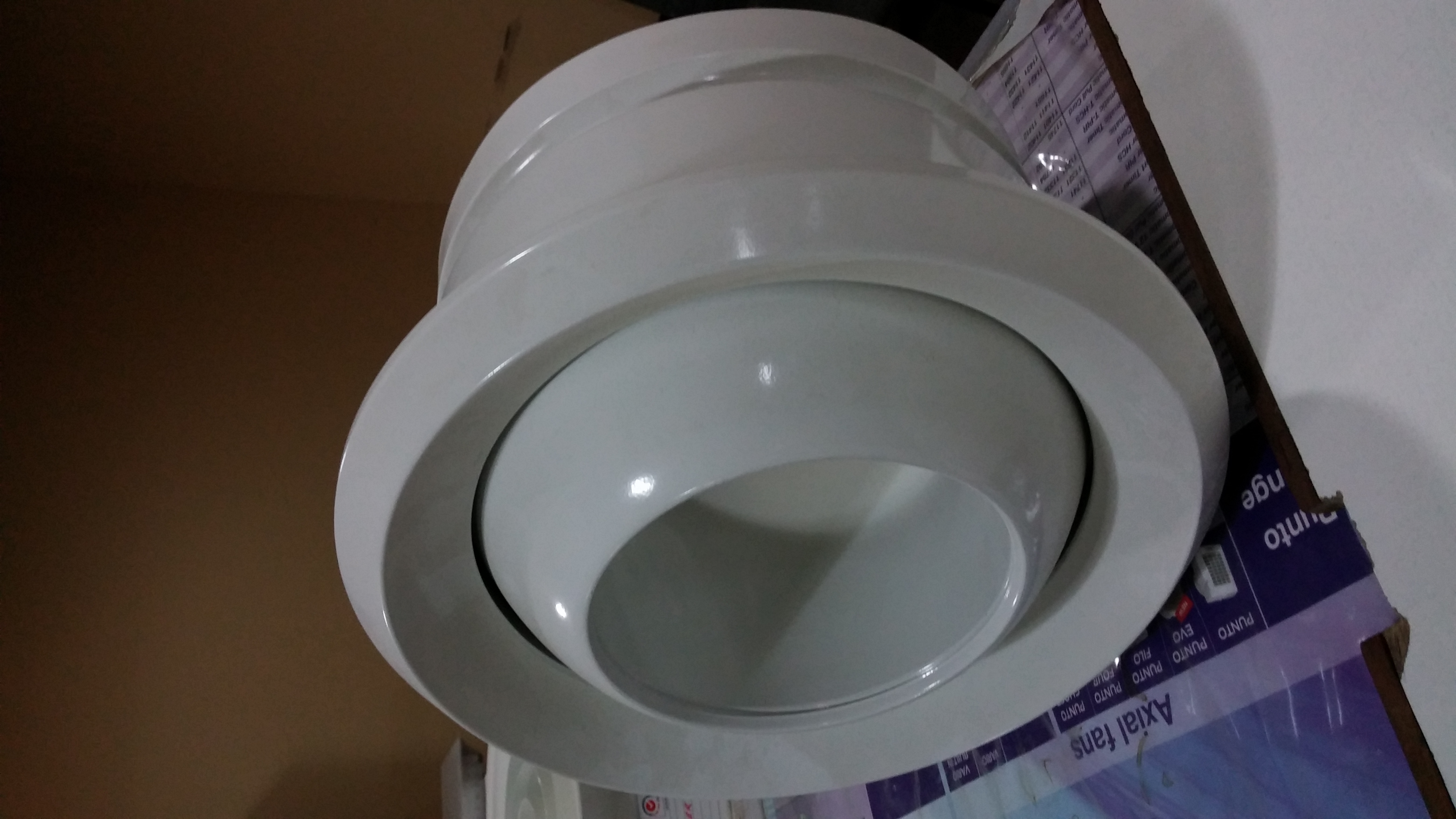

Eye ball Diffuser

enviro tech industrial product
enviro tech industrial product

We are engaged in offering a wide range of industrial diffusers. Among these we offer Eye ball Diffuser to our clients.These Eye ball diffusers are designed for long distance air throw Applications with low noise. With an actuator application, the ball can be moved in angle of 30 degrees from the center line in a vertical direction only. This eye ball diffuser can be rotated manually also.

Features:

  • Sturdy construction
  • Could be manually operated
  • Reasonable rates
  • Finish : Powder Coated
  • MOC : Mild Steel



Specifications:

Model No. Ceiling Opening Size (mm) Inlet Dia OD Dia (mm)
ETIP - 100 100 75 125
ETIP - 125 125 100 150
ETIP - 150 150 125 175
ETIP - 200 200 175 225




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

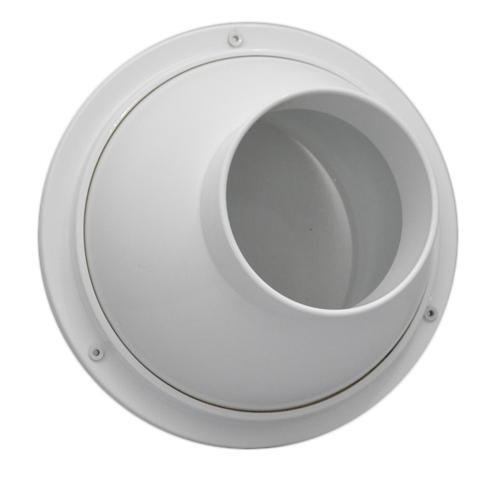

Spot Diffusers

enviro tech industrial product
enviro tech industrial product

We offer Spot Diffusers. The Spot diffusers are widely used in HVAC Industries where ducting are not possible such as in large Double Height Hall Malls Production Hall etc. These spot diffusers has an ability of setting the air throw within 40° of its installation. We offer these products at reasonable rates to our clients.

Features:

  • Finish : Powder Coated
  • Attachment : Butterfly Damper (Optional)
  • MOC : Aluminium

Specifications:

Model No.

A

B

C

D

E

F

G

H

I

J

K

ETIP-75

95

75

115

77

20

60

35

80

20

82

40DEG

ETIP-100

130

100

147

101

25

75

54

100

30

106

39DEG

ETIP-200

230

200

250

203

45

120

100

165

40

208

42DEG

ETIP- 300

340

304

362

314

62

200

165

262

50

318

39DEG

ETIP-400

450

410

470

420

93

247

225

340

60

425

40DEG


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

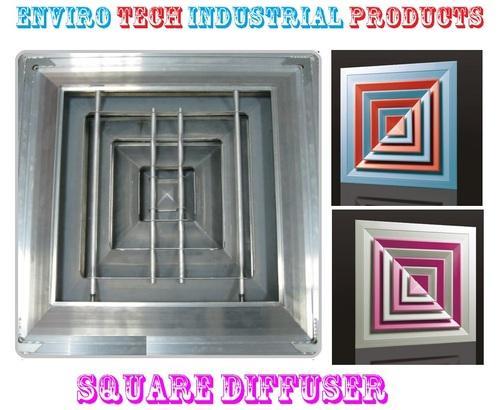

Square Diffuser

enviro tech industrial product
enviro tech industrial product

We are a leading industry, offering world-class range ofSquare Diffuser. The product is used widely in various industrial applications and are extensively preferred for their maximum performance level, smooth functioning attribute and longer service life. To meet the requirements of the clients, the product can be custom made as per the requirements and specifications, on demand.



Features:



  • Robust structure

  • Optimum performance level

  • Longer service life

  • As per the set quality specification


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

Disc Valves / Round Valves

enviro tech industrial product
enviro tech industrial product

Application:


Square swirl diffuser with individually adjustable vanes to be used from 2.6 mtrs. to 4.0 mtrs. high in Air-conditioning, ventilating and heating system.

Mounting:

Overlapped in false ceiling by means of hidden fixing systems or directly replacing the false ceiling tile as well as directly in the plenum boxes.

Implementation
:

High quality aluminum sheet construction slots punched in a radial layout with individually adjustable black plastic vanes on rear side. Available in standard sizes to fix with plenum boxes. Ensures a swift reduction temperature and flow velocity by means of swirling discharge and the addition of induction air, excellent performance that eliminated drafts and stratification. Rapid entrainment and intermixing capabilities.

Standard Finishes
:

Available in natural aluminum, anodized or powder coated in standard RAL white colors.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

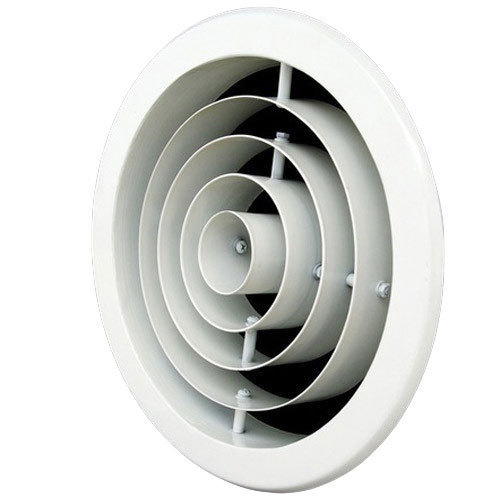

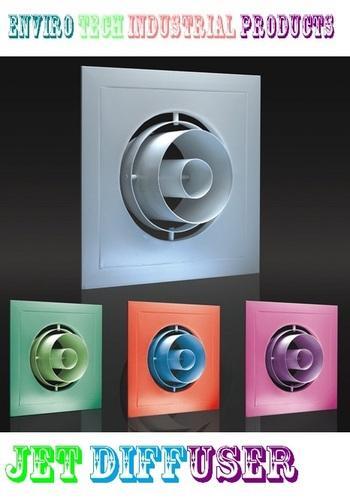

Jet Diffuser

enviro tech industrial product
enviro tech industrial product

With the help of our diligent professionals, we are able to offer Jet Diffuser. These are extensively used in varied industries and are appreciated for their optimum performance, precise functioning and longer service life. Further, to meet the varied application requirements these are available in standard as well as customized specifications.

Configuration:

  • Jet diffuser is made up of high quality aluminum
  • Jet diffuser are designed for use in large areas long throw such as sport centers, theaters, airport, entertainment and industrial area
  • Jet diffuser suitable for air conditioning evaporate cooling or ventilation application
  • Jet diffuser can be rotated by 360 degree by adjusting the core
  • Jet diffuser are available in with or without panel
  • Standard Finish: Natural anodized & Powder coated

Standard Finishes :

  • Jet diffusers are available in natural aluminum, anodized or powder coated in standard RAL white colors

Application:

  • Jet diffusers are immensely used for high ceiling such as airports, cinema theaters, shopping malls, exhibition halls & high roofing industries.

Mount

  • The jets diffusers can be fixed by means of visible metal screws on flanges in side throw or to be fixed directly with plenum boxes.



Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

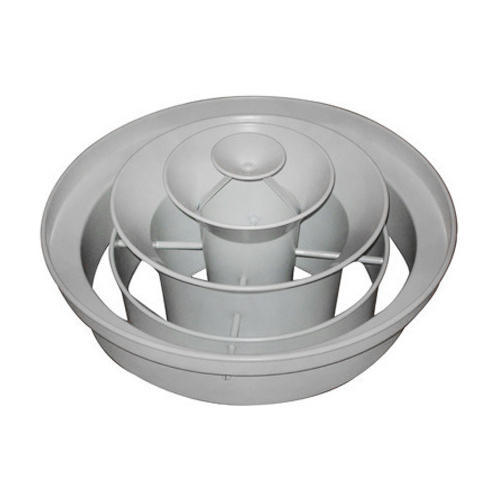

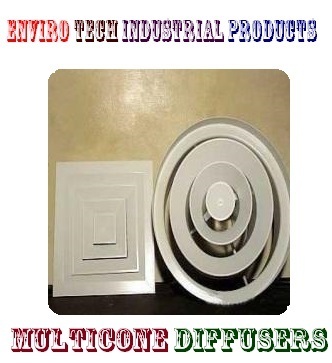

Multicone Diffusers

enviro tech industrial product
enviro tech industrial product

We are engaged in manufacturing and supplying a superior quality range of Multicone Diffusers. This is available in MDC model and is suitable for air distribution as per global standards in various industries. These help in creating efficient air distribution and also maintain various ceiling patterns. We use high grade aluminium in construction purpose to ensure different air pattern control core designs for horizontal diffusion.



Other Information

  • Pay Mode Terms: T/T (Bank Transfer)





Yes ! I am Interested

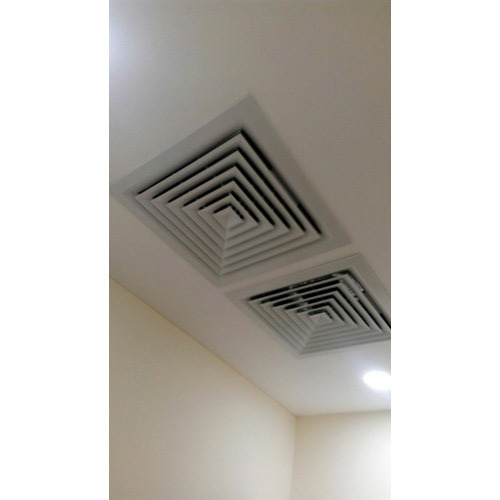

Ceiling Diffuser

enviro tech industrial product
enviro tech industrial product

Our clients can avail from us a range of Ceiling Diffusers,which is used in various establishments for supplying air. These elegant diffusers are suitable to be used with any kind of ceiling. Reckoned for durability, these wear & tear resistant diffusers are in compliance with the defined industry standards. Some features that make these popular are:

  • Durability
  • Excellent finish
  • Easy to install



Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

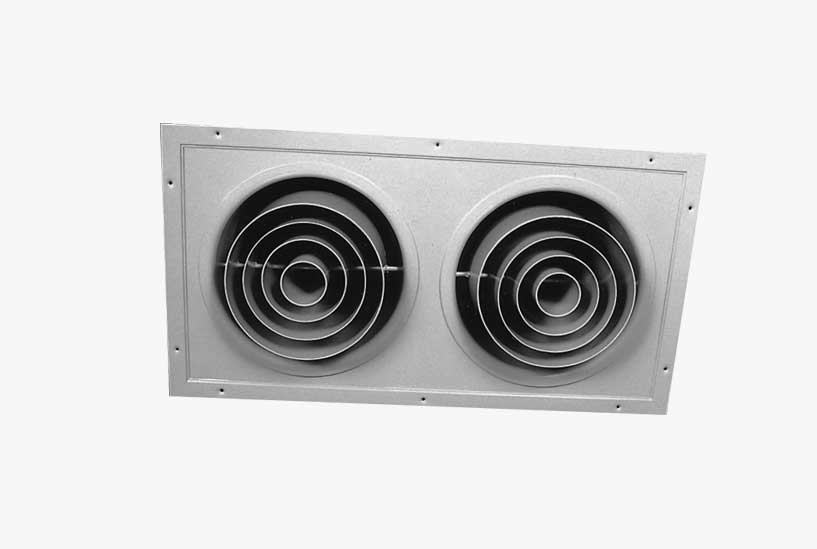

Jet Nozzle Diffuser

enviro tech industrial product
enviro tech industrial product

Jet Nozzles are to be used for very high ceiling like airports cinema theaters shopping malls exhibition halls and high roofing industries. For ceiling mounting supply of large quantities of air or side wall installation with very long throws. They are having high air handling capacity with low noise level.

Mounting:

Fixing by means of visible metal screws on flanges in side throw or to be fixed directly with plenum boxes.

Implementation
:

Frame and inner rings are made of high quality aluminum jet diffusers are mounted in aluminum square plate covered by flanged border. Diffusers can be adjustable 30º upwards or downwards to achieve required throw as per site conditions.


Neck Size 150 200 250 300 350 400 450
Outer Size 195 245 295 355 405 455 505


Standard Finishes
Available in natural Aluminum, anodized or powder coated in standard RAL white colors.


Yes ! I am Interested

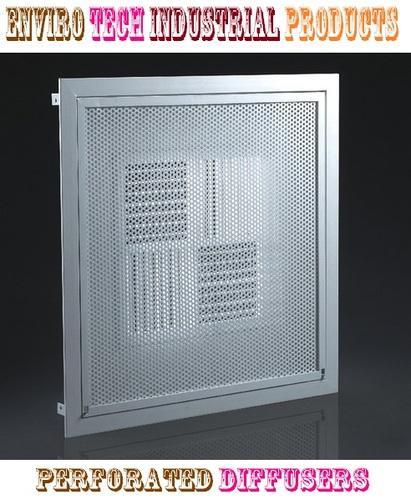

Perforated Diffusers

enviro tech industrial product
enviro tech industrial product

Perforated Diffusers are implemented using frame with flat frontal face of 30mm and inner leaves of aluminium sheets connected by means of metal screws with the frame. Recommended along with exhaust fan installation louvers to open when fan is in operation at duct branches. Designed to prevent rain penetration. Standard or non-standard sizes also available.


Application:

Air expelling in air conditioning, ventilating and heating systems.

Mounting:

Overlapped in the wall by means of visible screws.

Standard Finishes:

Available in natural aluminium, anodized or powder coated in standard RAL white colours.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

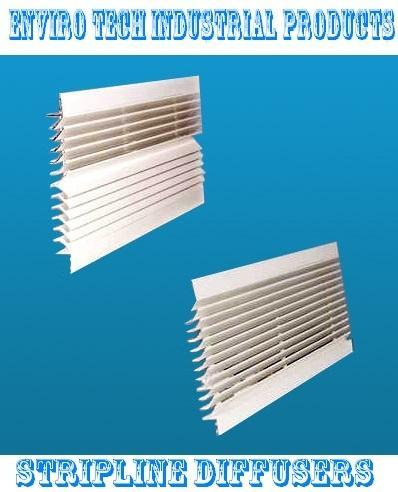

Stripline Diffusers

enviro tech industrial product
enviro tech industrial product

Stripline Diffusers are mainly used for outdoor installationto take the air from the exterior or to expel the used air in air-conditioning, ventilating and heating systems. Louvers are designed to prevent rain penetration.


Mounting:

Overlapped in the wall by means of visible screws or side frames to fix in place.

Implementation:

Frame with flat frontal face of 30mm and inner fixed blades inclined at 45º, from 27 to 32mm pitch according to sizes. Diamond mesh of 13mm x 13mm fixed on back side of the louver to avoid the entrance of foreign bodies into the installation. Provides a neat external appearance to the building. Available in standard or non-standard sizes.

Standard Finishes:

Available in natural aluminium, anodized or powder coated in RAL white colors.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

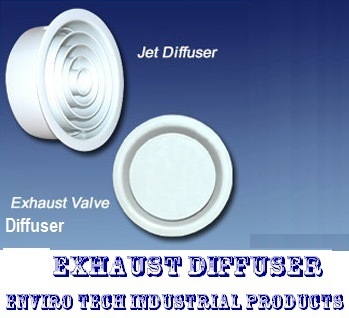

Exhaust Diffusers

enviro tech industrial product
enviro tech industrial product

With our expertise in this domain, we specialize in offering a wide range of Exhaust Valve Diffusers. These are manufactured by our team of qualified engineers using our advanced production techniques. Our exhaust valves are specifically designed for use in entertainment, industrial and toilet areas for their air flow feature.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

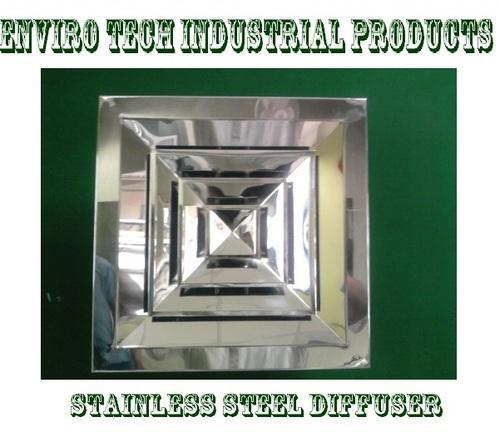

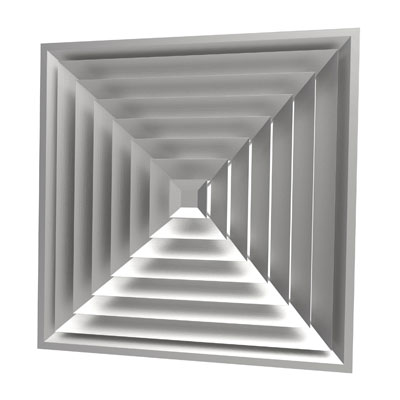

Stainless Steel Diffuser / S.S. Diffusers

enviro tech industrial product
enviro tech industrial product

With vast industry experience, we are engaged in offering S.S. Diffusers. These products are available and manufactured by our production staff using high quality stainless steel as per the set industrial standards. Our quality analysts check all these diffusers before delivery on well-defined parameters. These diffusers are available in the market at competitive prices as per the needs of our clients.

Features:

  • Precise Dimensions
  • Durability
  • Low Maintenance


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

Stripline Diffusers

enviro tech industrial product
enviro tech industrial product

Stripline Diffusers are mainly used for outdoor installationto take the air from the exterior or to expel the used air in air-conditioning, ventilating and heating systems. Louvers are designed to prevent rain penetration.

Mounting:

Overlapped in the wall by means of visible screws or side frames to fix in place.



Implementation:

Frame with flat frontal face of 30mm and inner fixed blades inclined at 45º, from 27 to 32mm pitch according to sizes. Diamond mesh of 13mm x 13mm fixed on back side of the louver to avoid the entrance of foreign bodies into the installation. Provides a neat external appearance to the building. Available in standard or non-standard sizes.



Standard Finishes:



Available in natural aluminium, anodized or powder coated in RAL white colors.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

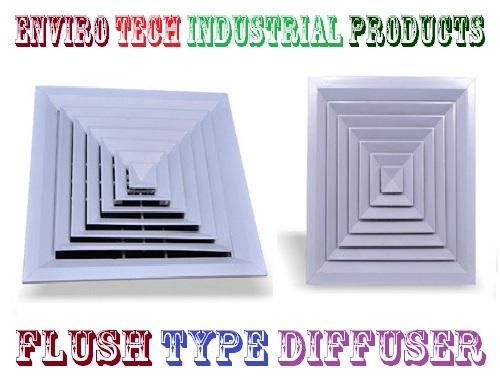

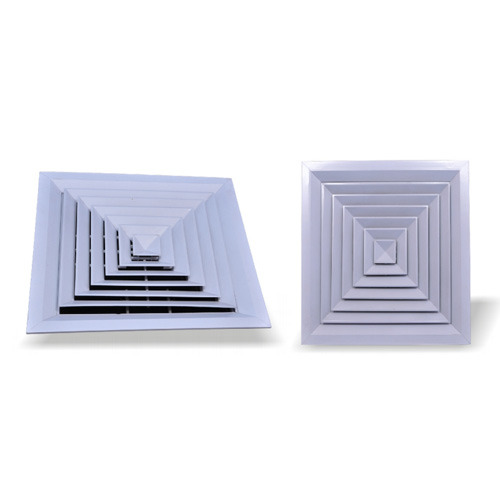

Flush Type Diffuser

enviro tech industrial product
enviro tech industrial product

We are a reliable manufacturer and exporter of Flush Type Diffuser.These Flush type diffusers are available in multi cone type arrangement for air distribution through ceiling. Our offered range of diffusers are specifically designed for ceiling mounting.

Features:

  • Finish : Powder Coated
  • Attachment : Oppose blade type damper (Optional)
  • MOC : Aluminium

Specifications:

Model No.

Outer to Outer Size MM

Neck

Size MM

Collar

Size MM

Height

Cutout Opening Size MM

ETIP-150

270x270

150x150

135x135

41

205x205

ETIP-225

345x345

225x225

210x210

41

280x280

ETIP-300

420x420

300x300

285x285

41

355x355

ETIP-375

495x495

375x375

360x360

41

430x430

ETIP-425

570x570

425x425

440x440

41

505x505

ETIP-455

595x595

475x475

460x460

41

530x530





Other Information

  • Pay Mode Terms: T/T (Bank Transfer)




Yes ! I am Interested

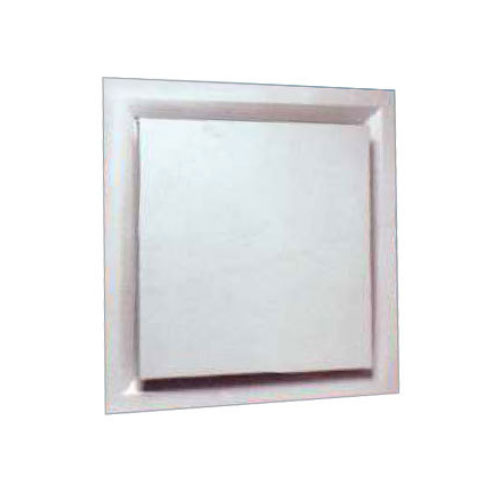

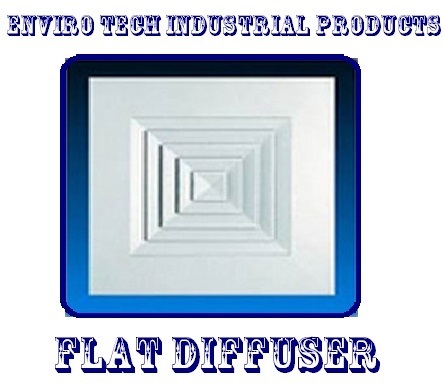

Flat Diffuser

enviro tech industrial product
enviro tech industrial product

  • Manufactured from aluminum sheets in one piece. (No joints / gaps at corners)
  • Easily removable Internal Assembly for cleaning or servicing, if necessary
  • Available as Supply and Return Diffuser. (With or Without Opposed Blade Damper)
  • Less dirt accumulation.
  • Powder coated in attractive colours.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

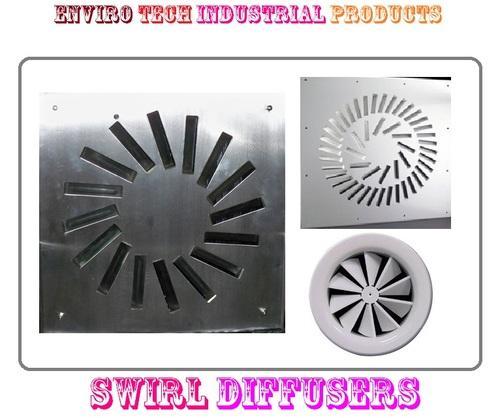

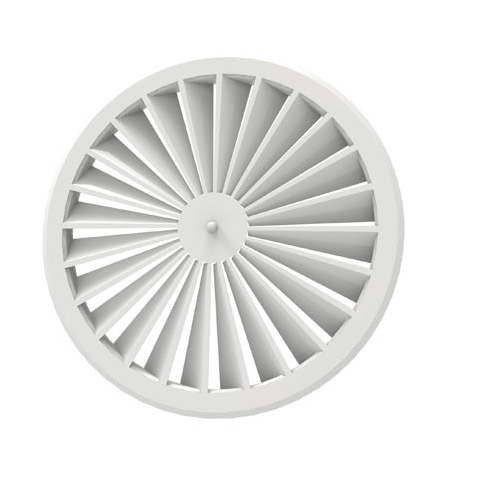

Swirl Diffusers

enviro tech industrial product
enviro tech industrial product

Our range of Swirl Diffusers is easy to install and offers superior power efficiency. The products are made in accordance with the set global standards. These products have fully adjustable air pattern blades for supplying air properly. The adjustable vanes attached to these products are capable to solve the problems regarding the supply of warm and cool air into the modem office application.



The salient features of the product range are:

  • Durability
  • Reliability
  • Quick in response



Construction

The products are manufactured from pressed sheet steel with adjustable aluminum vanes.



Size and weight

The most common size is 595* 595mm overall so as to suit a standard lay-ub-ceiling grid


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested
