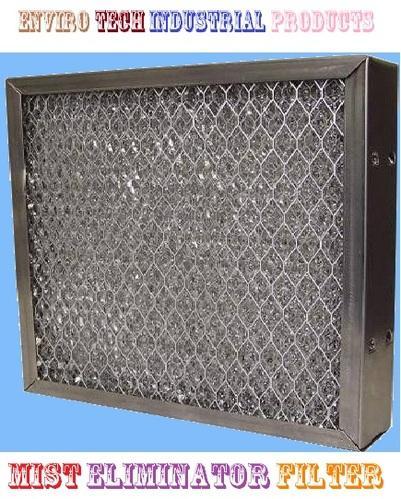

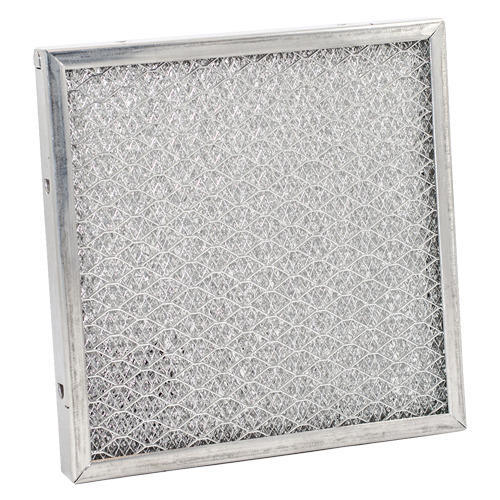

Mist Eliminator Filter

enviro tech industrial product
enviro tech industrial product



Application: Kitchen extract systems, Pre filtration within air conditioning systems.

Type: Grease elimination or coarse dust removal.



Frame: Standard galvanized mild steel, stainless steel or aluminum



Media: Knitted or multilayer pad.



Arrestance efficiency: 65% - 80%.



Eurovent 4/5 efficiency: EU2, EU3.



Temperature: 100°C maximum in continuous service.



Humidity: 100% RH.



Accessories: Handles and drain holes.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

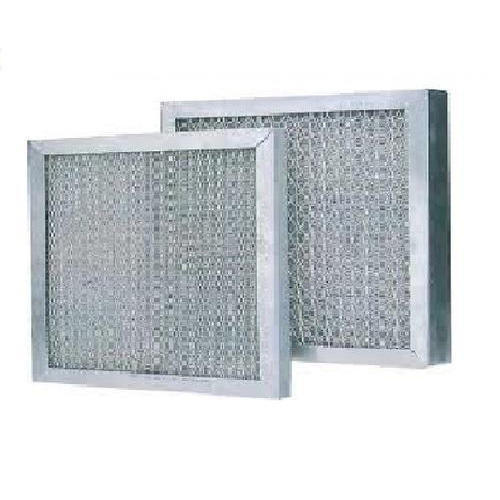

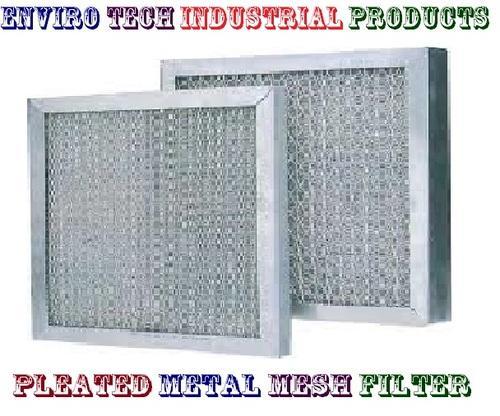

Pleated Metal Mesh Filter

enviro tech industrial product
enviro tech industrial product

Pleated Metal Mesh Filter are pre filters that are designed for general ventilation and air conditioning system applications as well as for electric motors and plenum air for working areas. These are an economical and a very durable option over other pre filter counterparts.

Construction: The element is constructed using 5 layer of GI Wire mesh interspaced with 2 crimpled layers and 3 flat layers. The media is supported with expanded metal from both sides as reinforcement and housed usually in deep metal frame (custom build sizes are also available on order).



Specification Efficiency



Standard Pleated Metal Mesh Filter have an efficiency of 65% for 20 micron size particles. Metallic filters with an efficiency rating of 65-85% to capture 25 micron to 50 micron size particles are also available on order. Efficiency can be increased to 85% if the filters are oil wetted.



Frame Type : Available in Flange or Box Type GI,AL.,SS.

Filter media : GI/SS/Aluminum expanded mesh

Face guard : Filter is protected with expanded mesh on both sides

Pressure drop :Initial pressure drop ~1mm wg & recommended final pressure drop is 5-10mm wg

Operating conditions

Filter can withstand temperature >80âºc and relative humidity of 70%. Recommended air velocity is 2m/sec to 2. 5m/sec. Filter is washable and can be washed using water or back air pressure and reused.



Application



Pleated Metal Mesh Filter are most suited for:

Air Handling Units (ahus),
Automatic Drain Holes,
Paint Shops,
Textile Mills,
Cement Factories,
Miscellaneous Industrial Ventilation.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

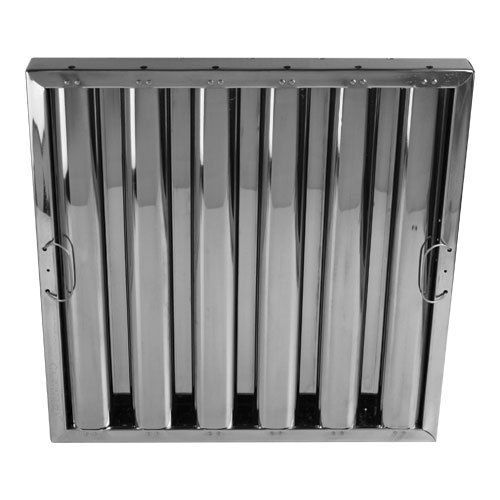

Hood Filter

enviro tech industrial product
enviro tech industrial product

With support of our excellent team workers, we have been delivering the best quality range of Hood Filter. These are manufactured by employing sophisticated technology by our professionals. Available in different sizes, we also provide these products as per the clients’ specifications. Apart from this, we provide these products in customized options and at industrial leading prices.


Features:

  • Strong construction
  • High efficiency
  • Smooth functioning


Specifications:

  • We offer a range of hood and filters that are fabricated from various metals and alloys, according to the area of application
  • These hoods and filters are designed in order to throw out toxic or harmful fumes. These are used to eliminate the toxic gases from the kitchen through ducting with the help of exhaust blower

Yes ! I am Interested

Wire Mash Filter

enviro tech industrial product
enviro tech industrial product

While climbing on the success ladder, it has become increasingly important for us to deliver precisely tested and high grade assortment of Wire Mash Filterused in air washers or fresh air units. We assure our clients that our range is quality tested on predefined parameters, in order to meet international standards. Apart from this our prestigious clients can avail the entire range as per their needs, at highly competitive price. This filter can be cleaned very easily.



Features:



  • Reliability

  • Premium quality

  • Highly durable



Specifications:



efficiency standard metallic viscous filters have an efficiency of 65% for 20 micron size particles. Metallic filters with an efficiency rating of 65-85% to capture 25 micron to 50 micron size particles are also available on order. Efficiency can be increased to 85% if the filters are oil wetted.
frame type available in flange or box type gi,al. ,ss,.
filter media gi/ss/aluminum expanded mesh
face guard filter is protected with expanded mesh on both sides
pressure drop initial pressure drop ~1mm wg and recommended final pressure drop is 5-10mm wg
operating conditions filter can withstand temperature >80âºc and relative humidity of 70%. Recommended air velocity is 2m/sec to 2. 5m/sec. Filter is washable and can be washed using water or back air pressure and reused.
application enviro tech metallic filters are most suited for:
air handling units (ahus) automatic drain holes, paint shops, textile mills cement factories and miscellaneous industrial ventilation.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

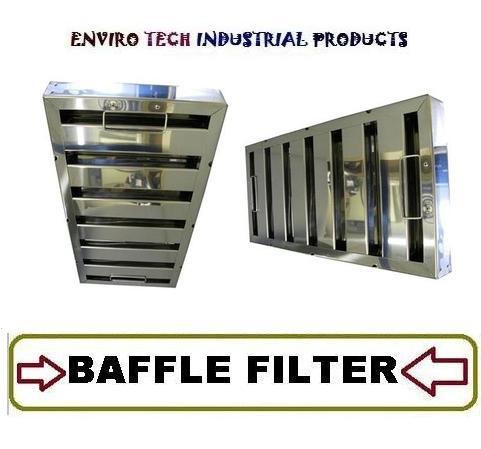

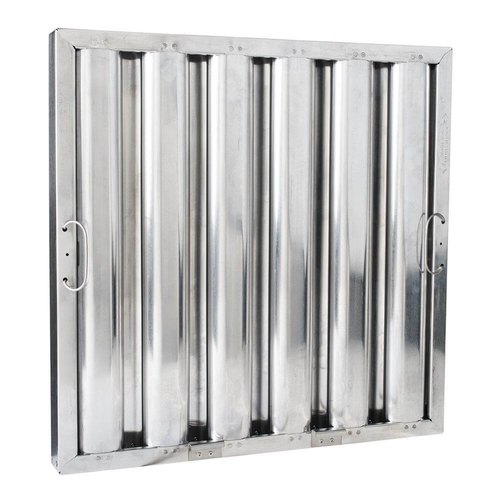

Baffles Filter

enviro tech industrial product
enviro tech industrial product

 Being an industry leader, we provide a wide gamut of Baffles filters.These are made up with galvanized steel and aluminum. The spacing in the filter develops an air flow that further causes grease collection, draining down baffles and into the collecting trough. We also offer our filters in various customizations as per our clients’ needs. These filters are developed to withstand various temperature levels.



Features:



  • Easy to clean

  • High efficiency

  • Application specific design





Applications :



  • Recleanable stainless steel filters that are ideal in applications such as commercial Kitchens, Hotels, Restaurants and Takeaways.

Yes ! I am Interested

Metallic Viscous Filters

enviro tech industrial product
enviro tech industrial product

Metallic Viscous Filters are pre filters that are designed for general ventilation and air conditioning system applications as well as for electric motors and plenum air for working areas. These are an economical and a very durable option over other pre filter counterparts.


Construction: The element is constructed using 5 layer of G.I. wiremesh interspaced with 2 crimpled layers and 3 flat layers. The media is supported with expanded metal from both sides as reinforcement and housed usually in 2” deep metal frame (Custom build sizes are also available on order).


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

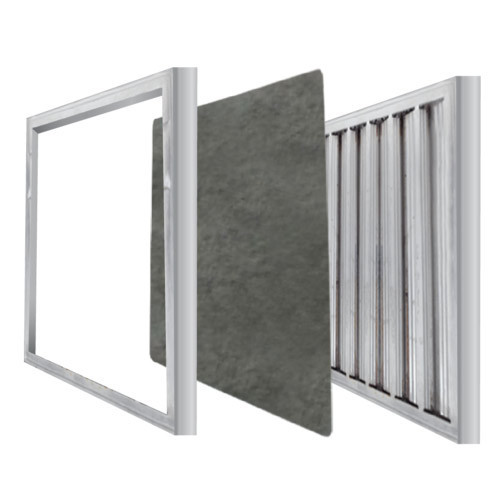

Grease Filter

enviro tech industrial product
enviro tech industrial product

Grease Filters are light weight, aluminium / SS baffle grease stop air filter having non-clogging type characteristic and designed for constant flow.


Construction: Available in three models: made of galvanized steel, aluminum or stainless steel, these 2" thick baffle grease filters contain two layers of roll formed baffles, equally spaced and without any sharp edges. Spacing creates an airflow that causes grease to collect, drain down the baffles and into collecting trough. Filters are designed to prevent flame from passing through the filter baffles, and are made to withstand different temperature levels.



Application: These filters are used on those kitchen extract systems where functionality and economics are paramount and where the grease load is relatively low.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

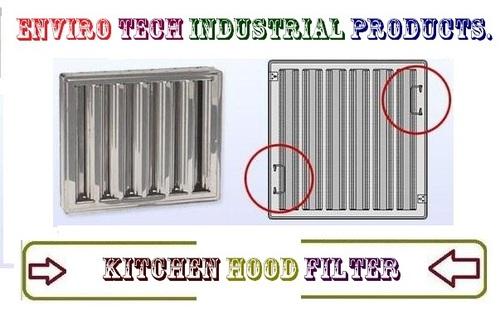

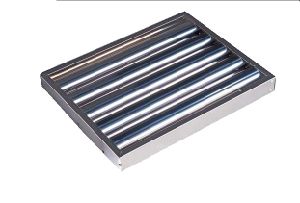

Kitchen Hood Filter

enviro tech industrial product
enviro tech industrial product

We are an acclaimed name engaged in offering our precious clients a superior quality range of Kitchen Hood Filter products are manufactured using optimum grade raw material and sophisticated technology in synchronization with international standards. Baffle filters provide excellent air flow over gas, steam, or electric-powered cooking equipment and remove contaminants efficiently. In order to ensure quality, the entire range is rigorously tested on various parameters by our quality controllers. Keeping in mind the diverse requirements of our clients, we provide entire range in various sizes and specifications and at affordable prices.



Features:



  • Easy to clean

  • High efficiency

  • Application specific design



Applications :



  • Recleanable stainless steel filters that are ideal in applications such as commercial Kitchens, Hotels, Restaurants and Takeaways.



Specifications:

Sr. No.

Filter Size

Air Flow Rate(C F M)

1

610X610X50

1000

2

635X508X50

900

3

508X508X50

800

4

635X406X50

700

5

508X406X50

650


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Yes ! I am Interested

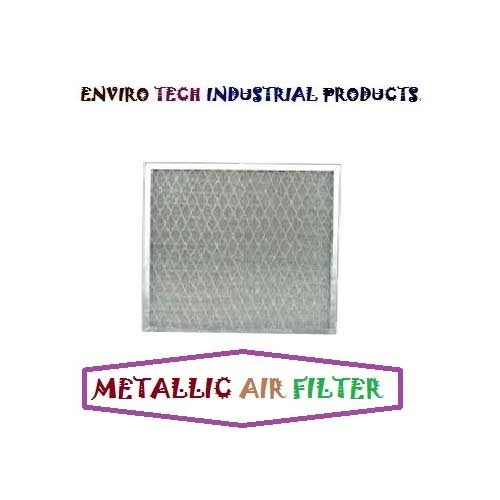

Metallic Filters

enviro tech industrial product
enviro tech industrial product

Metal Filters are designed for removing coarse particles, water droplets or mist and Grease from the Air stream.

Product Information – Standard Sizes

Sl. No.

Dimensions (MM)

Rated Air Flow

Capacity(CMH)

Initial Resistance

(MM of WC)





(HXWXD)

@ 1.5M/Sec

@2.54M/Sec

@1.52M/Sec

@2.54M/Sec



1

610X610X25

2040

3400

1.7

2.8



2

305X305X25

1020

1700

1.7

2.8



3

305X305X25

510

850

1.7

2.8



4

610X610X50

2040

3400

1.7

2.8



5

305X610X50

1020

1700

1.7

2.8

2

305X350X50

510

850

1.7

2.8








Other Information

  • Pay Mode Terms: T/T (Bank Transfer)


Yes ! I am Interested
